PlantUML with VSCode

PlantUML is a component that allows to quickly write:

Sequence diagram
Usecase diagram
Class diagram
Activity diagram
Component diagram
State diagram
Object diagram
Deployment diagram
Timing diagram

For PlantUML itself, it is a Jar package, but with VSCode, it can be even more powerful. VSCode has a PlantUML extension supporting review, export for multiple file-formats(png, svg etc.)

Get Started

Prerequisite

Java
Graphviz

I think everyone know how to download, install and setup Java, and Graphviz, you need to add its dot.exe into environment variables

Environment Variable Name	Value
GRAPHVIZ_DOT	C:\Software\Graphviz\bin\dot.exe

How to install

launch VSCode Quick Open(Ctrl + P), paste the following command, and press enter.

ext install plantuml

Basic Shortcut

Short Cut	Operation
Alt + D	Preview
Ctrl + Shift + P	Export
Alt + Shift + F	Auto Format

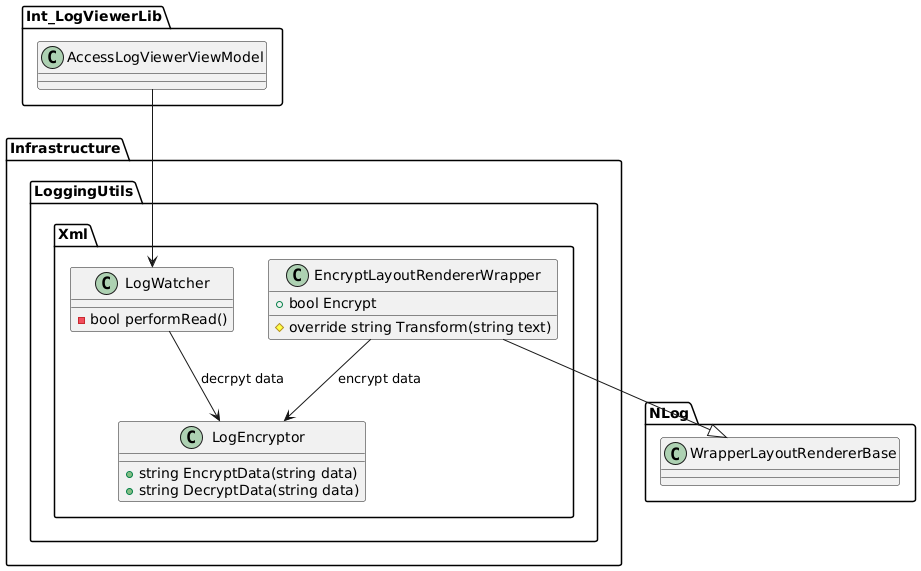

Example

@startuml Encrypt
{
    styles: blue
}

package Int_LogViewerLib {
    class AccessLogViewerViewModel {

    }
}

package  Infrastructure.LoggingUtils.Xml {
     AccessLogViewerViewModel --> LogWatcher

    class LogEncryptor {
        + string EncryptData(string data)
        + string DecryptData(string data)
    }

    class EncryptLayoutRendererWrapper {
        + bool Encrypt
        # override string Transform(string text)
    }

    class LogWatcher {
        - bool performRead()
    }

    LogWatcher --> LogEncryptor: decrpyt data
    EncryptLayoutRendererWrapper --> LogEncryptor: encrypt data
}

package  NLog {
    EncryptLayoutRendererWrapper --|> WrapperLayoutRendererBase
}
@enduml

Encrypt
